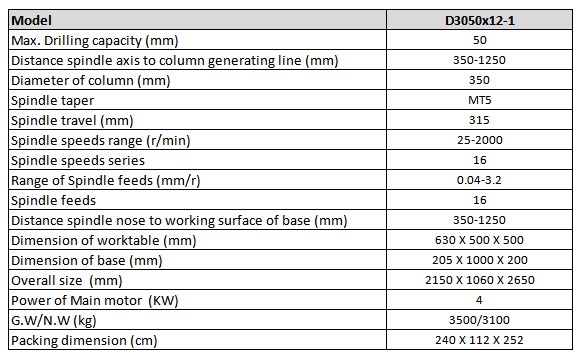

Description
| Model |
D3050x12-1 |
| Max. Drilling capacity (mm) |
50 |
| Distance spindle axis to column generating line (mm) |
350-1250 |
| Diameter of column (mm) |
350 |
| Spindle taper |
MT5 |
| Spindle travel (mm) |
315 |
| Spindle speeds range (r/min) |
25-2000 |
| Spindle speeds series |
16 |
| Range of Spindle feeds (mm/r) |
0.04-3.2 |
| Spindle feeds |
16 |
| Distance spindle nose to working surface of base (mm) |
350-1250 |
| Dimension of worktable (mm) |
630 X 500 X 500 |
| Dimension of base (mm) |
205 X 1000 X 200 |
| Overall size (mm) |
2150 X 1060 X 2650 |
| Power of Main motor (KW) |
4 |
| G.W/N.W (kg) |
3500/3100 |
| Packing dimension (cm) |
240 X 112 X 252 |
PURROS Machinery have various types of Hydro Speed Regulators, Self-Feeding Drill Heads(Units), Multi-Spindle Drill Heads and Servo feed tapping machine, Special Purpose Machines, warmly waiting for you to inquire.
