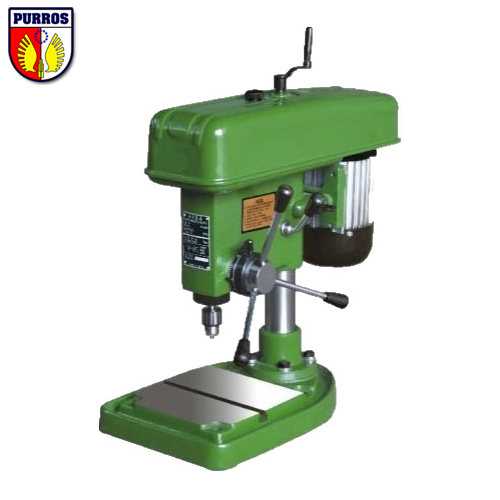

Description

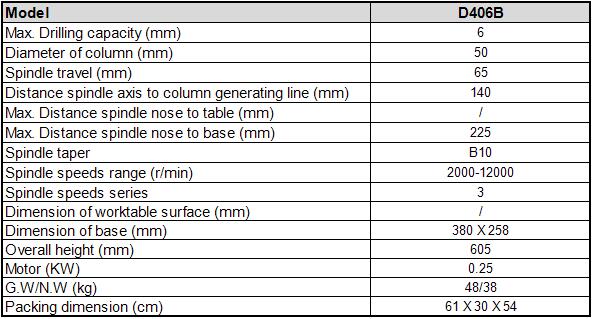

| Model |
D406B |
| Max. Drilling capacity (mm) |
6 |
| Diameter of column (mm) |
50 |
| Spindle travel (mm) |
65 |
| Distance spindle axis to column generating line (mm) |
140 |
| Max. Distance spindle nose to table (mm) |
/ |
| Max. Distance spindle nose to base (mm) |
225 |
| Spindle taper |
B10 |
| Spindle speeds range (r/min) |
2000-12000 |
| Spindle speeds series |
3 |
| Dimension of worktable surface (mm) |
/ |
| Dimension of base (mm) |
380 X 258 |
| Overall height (mm) |
605 |
| Motor (KW) |
0.25 |
| G.W/N.W (kg) |
48/38 |
| Packing dimension (cm) |
61 X 30 X 54 |
PURROS Machinery have various types of Hydro Speed Regulators, Self-Feeding Drill Heads(Units), Multi-Spindle Drill Heads and Servo feed tapping machine, Special Purpose Machines, warmly waiting for you to inquire.
