Description
·PRNE-2600 F Pedal Control
·PRNE-2600 H Button Control
| Model | PRNE-1300 | PRNE-2000 | PRNE-2600 | PRNE-4000 |
| Maximum working height (mm) | 300 | 300 | 300 | 300 |
| Cylinder soecifications (mm) | Φ160×100 | Φ200×100 | Φ160x100x100 | Φ200x100x100 |
| Adjustable stroke of cylinder (mm) | 50 | 50 | 50 | 50 |
| Area of working bench (mm) | 380×260 | 380×260 | 380×260 | 380×260 |
| Power (AC,50HZ) | 220V | 220V | 220V | 220V |
| Weight (kg) | 195 | 200 | 205 | 215 |
| Operating pressure | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 |
| Mpa | Theoretic pressure(KG) | |||
| 0.4 | 753 | 1205 | 1506 | 2410 |
| 0.5 | 942 | 1507 | 1184 | 3014 |
| 0.6 | 1130 | 1808 | 2260 | 3616 |
| 0.7 | 1318 | 2110 | 2636 | 4220 |
The actual output is about 80% theoretical output.
| Model | B | B1 | C | C1 | C2 | G | G1 | H | H1 | h | h1 | L1 | W1 |
| PRNE-1300 | 280 | 200 | 470 | 260 | 180 | 500 | 420 | 1100 | 610 | 300 | 100 | 500 | 260 |
| PRNE-2000 | 280 | 200 | 470 | 260 | 180 | 500 | 420 | 1200 | 610 | 300 | 100 | 500 | 260 |
| PRNE-2600 | 280 | 200 | 470 | 260 | 180 | 500 | 420 | 1320 | 610 | 300 | 100 | 500 | 260 |
| PRNE-4000 | 280 | 200 | 470 | 260 | 180 | 500 | 420 | 1400 | 610 | 300 | 100 | 500 | 260 |

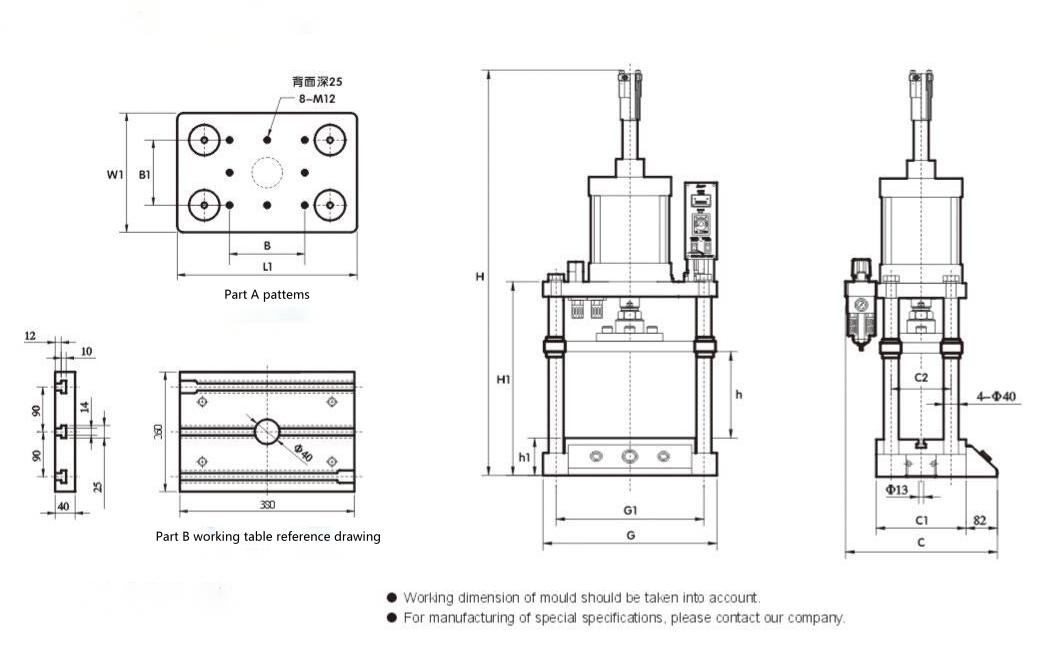

Drawing on physical dimensions

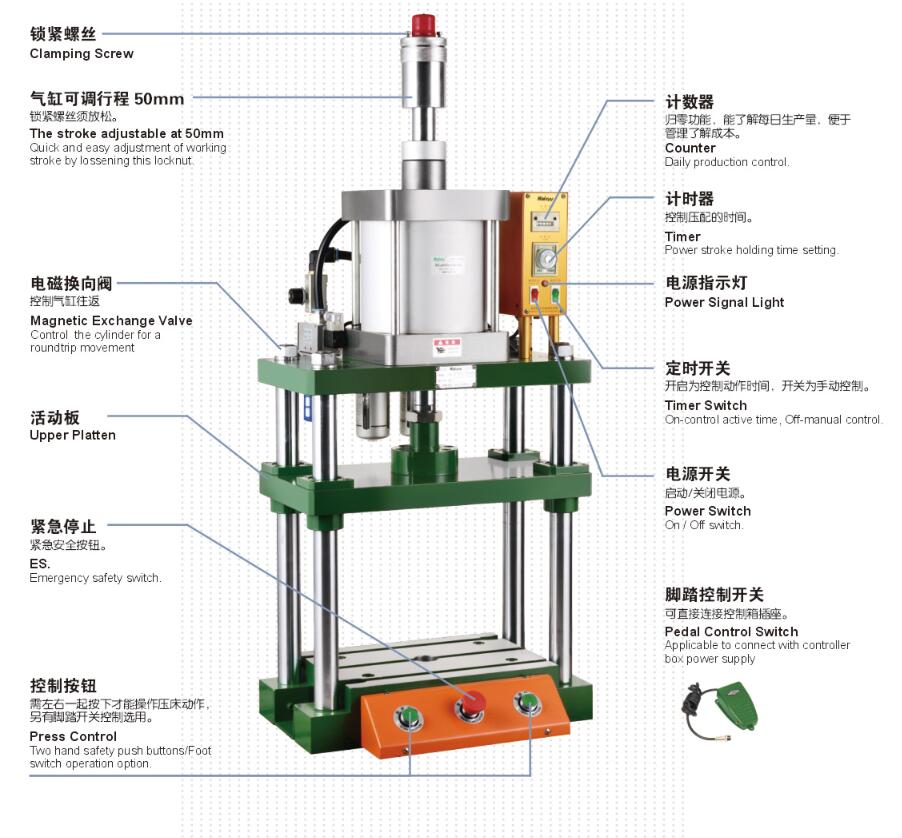

Pneumatic Press PRNE
Pneumatic Press PRNE
· Take compressed air as power source, easy to operate.
· There is not noise and environmental pollution generated by hydraulic system in standby timed, power consumption can be saved, and production costs can be reduced.
· Use the supercharging principle of air oil, to get quick action and high output. higher power requirements.
· Multi-functional purposes is suitable for pressure into the bearings, punching, riveting, assembly, cutting, etc.
· Output force is easily adjusted by adjusting air pressure, the required pressure can be gotten only by adjusting air pressure, it is simple and convenient.
· Type C machine bench structure, easy operation, convenient for material loading and unloading, consistent with working efficiency.
· Safety design, comfortable operation, human-based consideration suitable for long-tern operation.
· If need to do quick digression during operation, quick exhaust valve is optional.
